3-Axis/ 5-Axis Full Servo Robot 700-900mm
Key Specifications / Features
Model No.: 3A5AR-01 Hits: 138
3/5-Axis Full Servo Robot Provider Offers 3-Axis Full Servo Robot, 5-Axis Full Servo Robot, Travel (Up and Down) 700-900mm, for Machines from 80 to 380 Ton.
Request a quoteTags:
Detail Information
Runma 700-900 Series traversing robot arm is applicable to all types of horizontal injection machine ranging from 80 to 350 ton for products and sprues take-out.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out.
X-, Y-, Z-axis are driven by AC servo motor, can realize products stacking up on any points inside the mold, as well as at X, Y, Z directions, can cut the runner by scissors driven and inset or embed the accessory by the cylinder.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out.
X-, Y-, Z-axis are driven by AC servo motor, can realize products stacking up on any points inside the mold, as well as at X, Y, Z directions, can cut the runner by scissors driven and inset or embed the accessory by the cylinder.

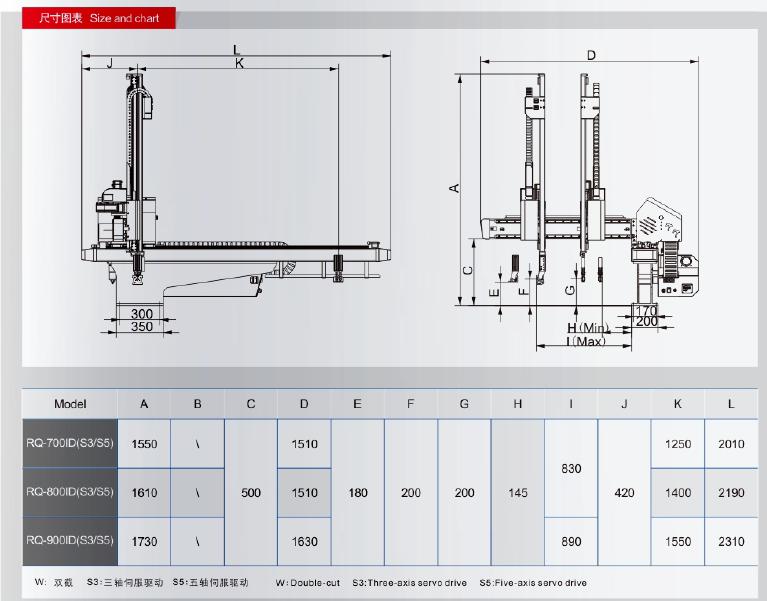

| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| RQ-700ID(S3, S5) | 1550 | \ | 500 | 1510 | 180 | 200 | 200 | 145 | 830 | 420 | 1250 | 2010 |
| RQ-800ID(S3, S5) | 1610 | 1510 | 1400 | 2190 | ||||||||
| RQ-900ID(S3, S5) | 1730 | 1630 | 890 | 1550 | 2310 |

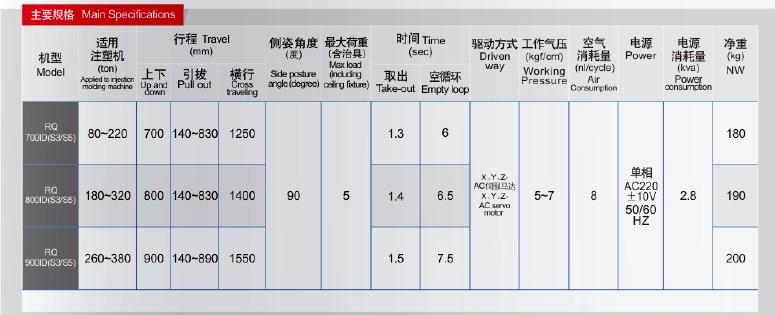

| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including fixture) | Time (sec) | Driven way | Working pressure (kgf/cm2) | Air consumption (nl/cycle) | Power | Power consumption | NW (kg) | |||
| up and down | pull out | cross traveling | take-out | empty loop | ||||||||||
| RQ-700ID(S3, S5) | 80-220 | 700 | 140-830 | 1250 | 90 | 5 | 1.3 | 6 | x, y, z AC servo motor | 5-7 | 8 | AC220±10V 50/60HZ | 2.8 | 180 |
| RQ-800ID(S3, S5) | 180-320 | 800 | 140-830 | 1400 | 1.4 | 6.5 | 190 | |||||||
| RQ-900ID(S3, S5) | 260-380 | 900 | 140-890 | 1550 | 1.5 | 7.5 | 200 | |||||||
