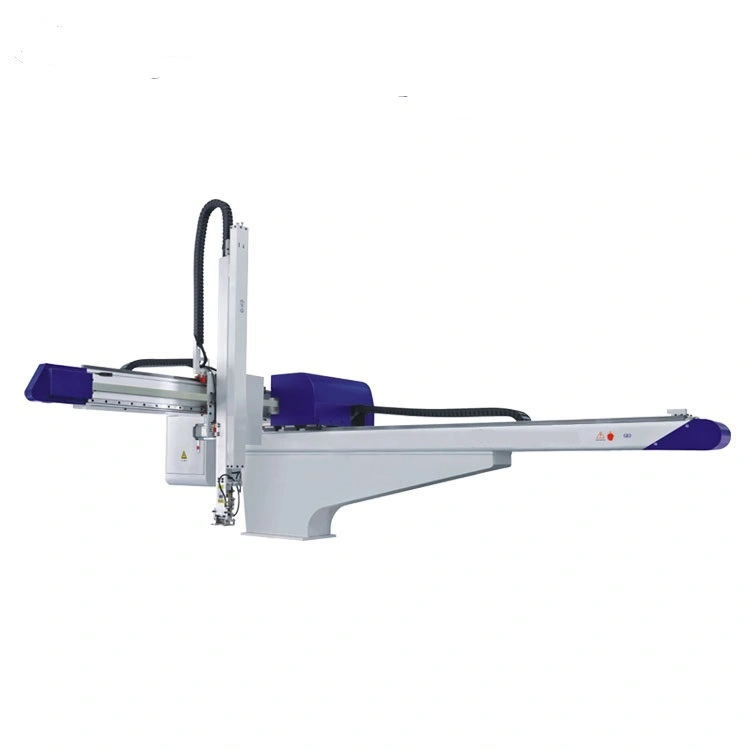

3-Axis/5-Axis robots with AC servo are extensively applied to horizontal plastic injection machines from 50~3000T which are mainly designed for rapid and precise removal on strict demands of good appearance of finished products and spruces. 3-Axis/5-Axis robots have two type arms: single stage and telescopic. The vertical strokes for single stage are 700/800/900 and for telescopic are 800/900/1000/1100/1300/1500/1700/2000mm. Full AC servo motors are driven on three axis (traverse /crosswise /main arm) and five axes (traverse /crosswise/vertical for main arm and sub arm), injection robot arm take-out at super high-speed 1.4 sec and dry cycle time within 5.6 seconds. All linear movement are controlled by servo driven control systems to cooperate with high rigidity structure of linear guide rail for realizing high precise take-out and accurate repeatability.
1-Axis AC servo injection robot arms are extensively applied to horizontal plastic injection machines ranging from 50~1600T which can take out the runners, runner and finished products from the mold of plastic injection molding machines. Injection robot arm have two types of arms-single stage and telescopic. The vertical strokes for single stage are 600/700/800/900 and for telescopic are 600/800/900/1000/1200mm. The arms move stably thanks to two sections of double speed structure. The traverse movement is driven by high performance AC servo motor. With different requirements of products, injection robot arm can work with various grippers and jigs to realize stable and perfect take-out products from mold by quick-descent of removal of products and slow-descent to place outside.
