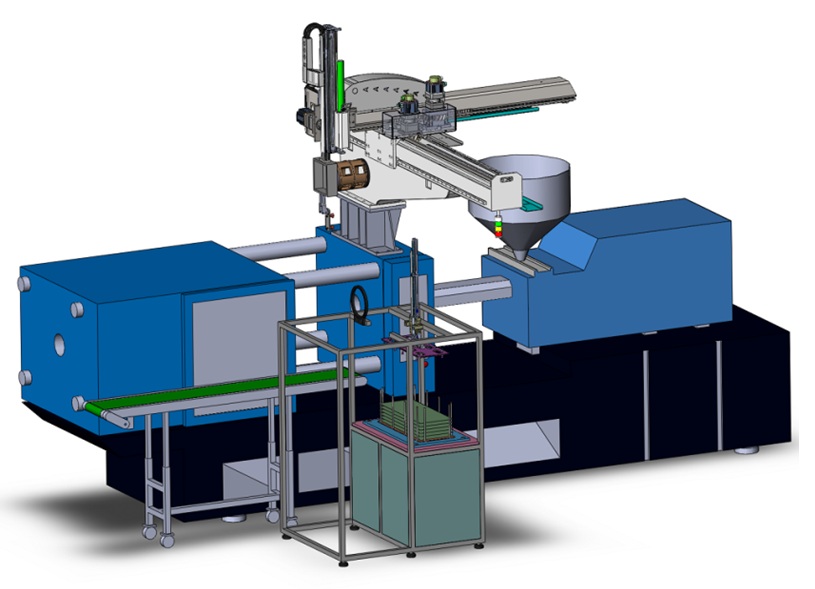

Top Entry In-mold Labeling Robot, Max Clamping Force 200-850 kN
Key Specifications / Features
Model No.: TEIR-01 Hits: 534
In-mold Labeling Equipment Manufacturer Provides Top Entry In-mold Labeling Robot, Various Options: Max Clamping Force 200 - 850 kN, Payload 5 - 20 kg.
Request a quoteTags:
Detail Information
Advantages
- A wide variety of solutions with top or side entry robot.

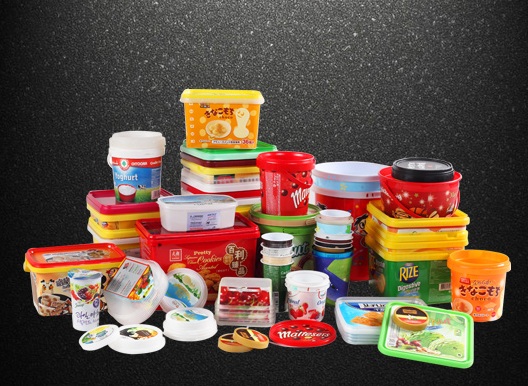

- A complete range of label magazines for containers from 30ml to 20lit.
- Standard TeachBox for all Runma robots.
- Worldwide services for start-up and training.
- Turnkey solutions with injection molding machines.
- Numerous options for control and stacking.
Features
- Robot models are ranging from RQ800IS3 (5 kg) to RN1900WS3 (20 kg).
- The robot can be mounted on the fixed platen, or on an external frame.
- High flexibility design for all kinds of IML applications (flat labels or wrap labels).
- Possibility of using an external stacking unit.
- Gripper with quick coupling connection.
Specifications
- A wide variety of solutions with top or side entry robot.
- A complete range of label magazines for containers from 30ml to 20lit.
- Standard TeachBox for all Runma robots.
- Worldwide services for start-up and training.
- Turnkey solutions with injection molding machines.
- Numerous options for control and stacking.
Features
- Robot models are ranging from RQ800IS3 (5 kg) to RN1900WS3 (20 kg).
- The robot can be mounted on the fixed platen, or on an external frame.
- High flexibility design for all kinds of IML applications (flat labels or wrap labels).
- Possibility of using an external stacking unit.
- Gripper with quick coupling connection.
Specifications
| Robot | RQ800IS-S3 | RQ900IS-S3 | RQ1100WS-S3 | RN1100WS-S3 | RN1300WS-S3 | RN1500WS-S3 | RN1700WS-S3 | RN1900WS-S3 |
| IMM clamping force | ≤200 | ≤300 | ≤500 | ≤500 | ≥500 | ≥600 | ≥750 | ≥850 |
| Dry cycle time | 9sec | 10sec | 11sec | 11sec | 12sec | 13sec | 15sec | 17sec |
| Max payload | 5kg | 5kg | 6kg | 8kg | 10kg | 12kg | 15kg | 20kg |
| Horizontal stroke Z-axis max | 1250mm | 1550mm | 1750mm | 1750mm | 1900mm | 2200mm | 2600mm | 2900mm |
| Vertical stroke Y-axis max | 800mm Single vertical arm |
900mm Single vertical arm |
1100mm Single vertical arm |
1100mm Telescopic vertical arm |
1300mm Telescopic vertical arm |
1500mm Telescopic vertical arm |
1700mm Telescopic vertical arm |
1900mm Telescopic vertical arm |
| Kick stroke X-axis max | 590mm | 750mm | 830mm | 900mm | 1120mm | 1200mm | 1200mm | 1600mm |
